Dry Sump Tanks

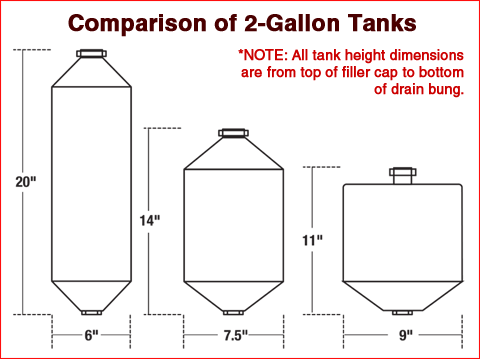

AVIAID AVIAID Dry Sump Tanks are manufactured to our specifications by Patterson Enterprises, originator of the modern dry sump tank. Spun from aluminum, our tanks are built in 6", 7.5" and 9" diameter versions. Capacities range from 1 gallon/3.6 liter to 6 gallon/21.6 liter and can be configured to suit most any requirement. The 3 diameters offer a variety of ways to achieve the required tank capacity in most any available space. All tanks are fully baffled and delivered with a complement of standard female o-ring fittings including 1 inlet, 1 outlet, 1 drain, 1 engine vent connection and 1 vent outlet. AN adapters are used to provide the male hose connection required for each application. Options include sight tubes, probe heaters, additional fittings and special features for both severe dynamic conditions and marine applications. AVIAID tank accessories are listed on the last page, following all tank listings. Download the dimensions sheet from the Tech Info section under the download link on the Home page. For use of these tanks with LS7 OEM dry sump engines see LS7 System Enhancements under Accessories for conversion to standard AN connectors. Fitting set sizes are listed in the follow order: SCAVENGE INLET : SCAVENGE OUTLET : VENT INLET : VENT OUTLET

129-56010 1.0 Gallon 6x12" Dry Sump Oil Tank



1.0 Gallon, 7.2 Liter Dry sump Tank Assembly Including 2 Brackets and Standard -12 Fitting Kit.

Length: 14"  Depth: 1.0 gal (7.2 liter)  Width: 6"
Price: $631.93

SKU: 129-56010
Please choose desired tank supply, return and vent fitting options. All fitting kits contain drain plug. AN Hose Fitting sizes are listed in the follow order: SCAVENGE INLET AND OUTLET : VENT INLET AND OUTLET

129-56015 1.5 Gallon 6x16" Dry Sump Oil Tank




1.5 Gallon 6" Diameter 16.5" Tall. 7.2 Liter Dry Sump Tank Assembly, Includes 2 Brackets and Standard -12 Fitting Kit

Length: 20"  Depth: 2.0 gal (7.4 liter)  Width: 6"
Price: $639.53

SKU: 129-56015
Please choose desired tank supply, return and vent fitting options. All fitting kits contain drain plug. AN Hose Fitting sizes are listed in the follow order: SCAVENGE INLET AND OUTLET : VENT INLET AND OUTLET
Quantity

129-56020 2.0 Gallon 6X20" Dry Sump Oil Tank



2.0 Gallon 6" Diameter 20" Tall. 7.2 Liter Dry Sump Tank Assembly, Includes 2 Brackets and Standard -12 Fitting Kit

Length: 20"  Depth: 2.0 gal (7.4 liter)  Width: 6"
Price: $647.13

SKU: 129-56020
Please choose desired tank supply, return and vent fitting options. All fitting kits contain drain plug. AN Hose Fitting sizes are listed in the follow order: SCAVENGE INLET AND OUTLET : VENT INLET AND OUTLET
Quantity

129-56025 2.5 Gallon Dry Sump Tank




2.2 Gallon 6"x 22.4" OAL With -12 fitting Kit


Price: $647.13

SKU: 129-56025
Quantity

129-56030 3 Gallon Dry Sump Tank




3 Gallon 6" x 25.4" 10.8 Liter, OAL Dry Sump Tank Assembly Including 2 Brackets and Standard -12 Fitting Kit


Price: $665.67

SKU:
Please choose desired tank supply, return and vent fitting options. All fitting kits contain drain plug. AN Hose Fitting sizes are listed in the follow order: SCAVENGE INLET AND OUTLET : VENT INLET AND OUTLET
Quantity

129-57520 2.0 Gallon 7.5x14" Dry Sump Oil Tank



2.0 gallon capacity aluminum dry sump tank dimensions 7.5" diameter, 14" tall net. 17" overall including drain bung and filler cap. with 2 brackets and 5 fittings. Ports include pump supply, scavenge return, bottom drain, engine vent, and tank breather vent.

Length: 7.5" (19.5 cm) net tank body  Depth: 14" (40 cm) net tank body, 17" over cap and drain  Width: 2.0 gal. (7 liter)
Price: $641.37

SKU: 129-57520
Please choose desired tank supply, return and vent fitting options. All fitting kits contain drain plug. AN Hose Fitting sizes are listed in the follow order: SCAVENGE INLET AND OUTLET : VENT INLET AND OUTLET
Quantity

129-57525 2.5 Gallon 7.5X17" Dry Sump Oil Tank



2.5 gallon capacity aluminum dry sump tank dimensions 7.5" diameter, 16" tall net. 19" overall including drain bung and filler cap. with 2 brackets and 5 fittings. Ports include pump supply, scavenge return, bottom drain, engine vent, and tank breather vent.

Length: 7.5" (19.5 cm) net tank body  Depth: 16" (40 cm) net tank body, 19" over cap and drain  Width: 2.5 gal. (10 liter)
Price: $660.49

SKU: 129-57525
Please choose desired tank supply, return and vent fitting options. All fitting kits contain drain plug. AN Hose Fitting sizes are listed in the follow order: SCAVENGE INLET AND OUTLET : VENT INLET AND OUTLET
Quantity

129-57530 3.0 Gallon 7.5X19" Dry Sump Oil Tank



3 gallon capacity aluminum dry sump tank 7.5" diameter, 19" tall net. 22" overall including drain bung and filler cap. with 2 brackets and 5 fittings. Ports include pump supply, scavenge return, bottom drain, engine vent, and tank breather vent.

Length: 7.5" (19.5 cm)   Depth: 19" (49 cm)  Width: 3.0 gal. (13 liter)
Price: $677.59

SKU: 129-57530
Please choose desired tank supply, return and vent fitting options. All fitting kits contain drain plug. AN Hose Fitting sizes are listed in the follow order: SCAVENGE INLET AND OUTLET : VENT INLET AND OUTLET
Quantity

124-08-009 3 Gallon Dry Sump Tank



3 Gallon 9" x 17" Dry Sump Tank Assembly. Including Brackets and standard -12 Fitting Kit.


Price: $662.59

SKU: 124-08-0009
Please choose desired tank supply, return and vent fitting options. All fitting kits contain drain plug. AN Hose Fitting sizes are listed in the follow order: SCAVENGE INLET AND OUTLET : VENT INLET AND OUTLET
Quantity

129-59052 5 Gallon Dual Return Marine Dry Sump Tank
59050 5 gallon marine tank



5 Gallon 9" x 22" Dry Sump Tank Assembly. Includes 3 Brackets, Dual Returns, 3rd marine internal baffle plate and standard -16 Fitting Kit. Tank shown had additional bungs for customer defined use. (Not included in price).


Price: $982.43

SKU: 129-59050-01
Contact AVIAID for additional custom options. Quantity
