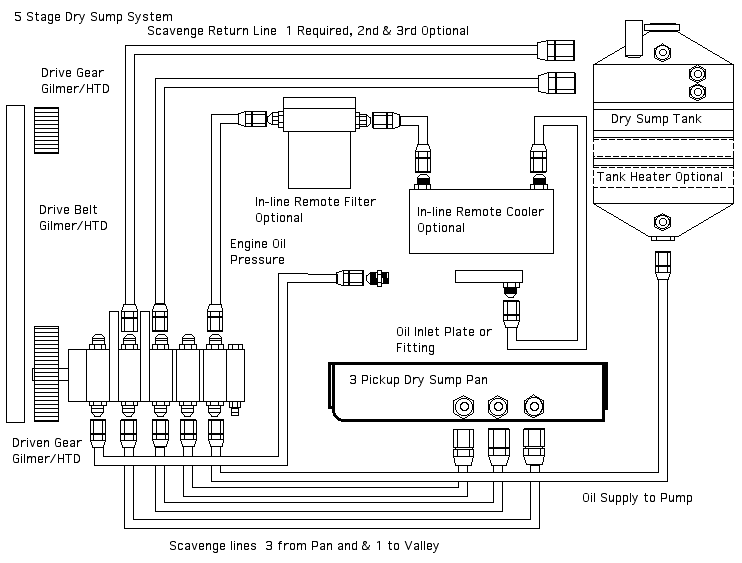

5 Stage Dry Sump System

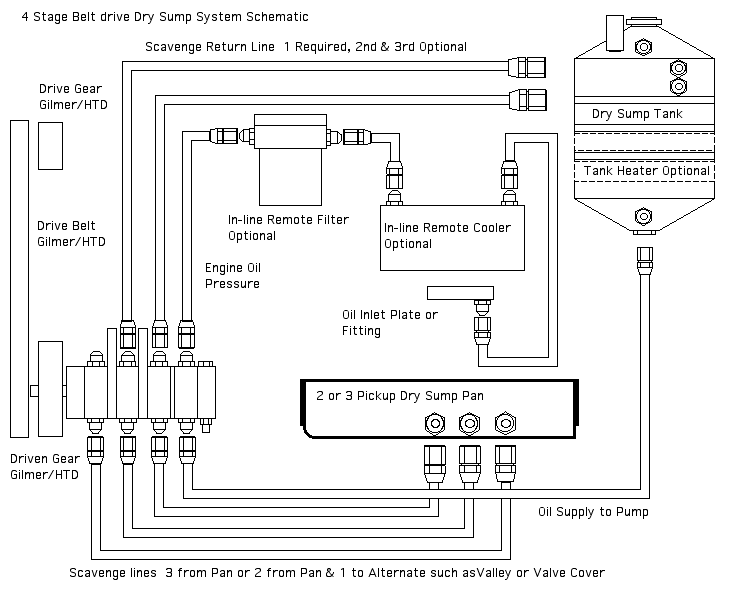

4 Stage Dry Sump System

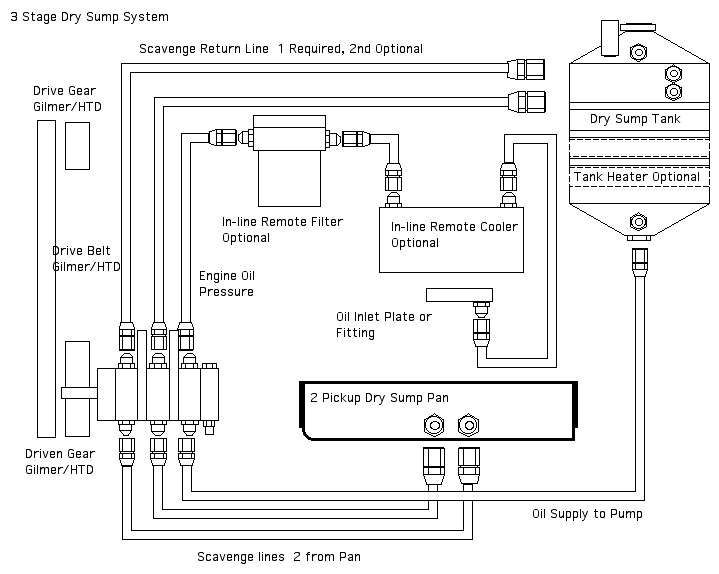

3 Stage Dry Sump System

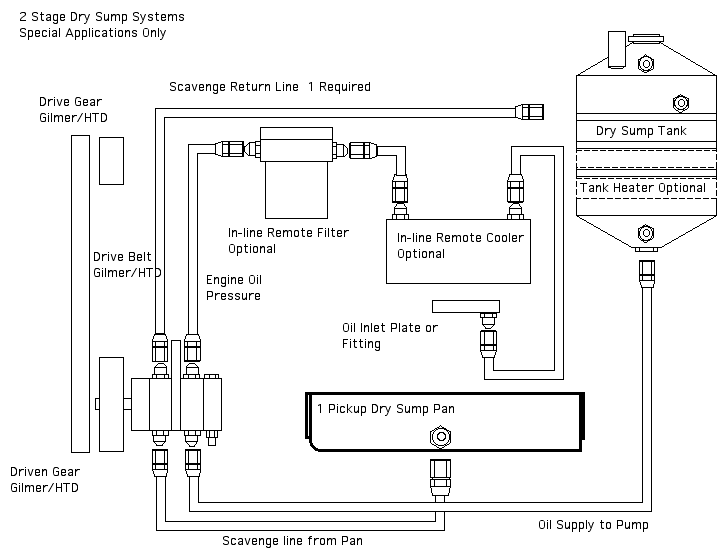

2 Stage Dry Sump System (Special Applications Only)

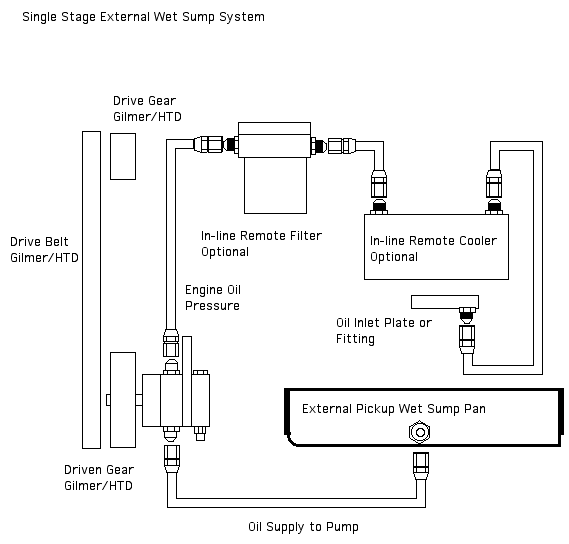

Single Stage External Wet Sump System

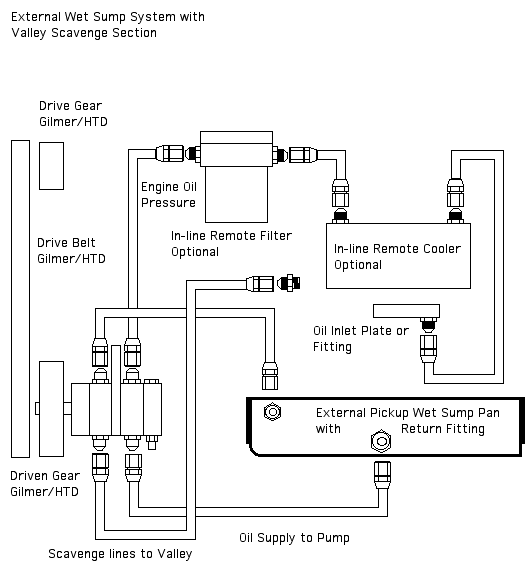

External Wet Sump System with Valley Scavenge Section

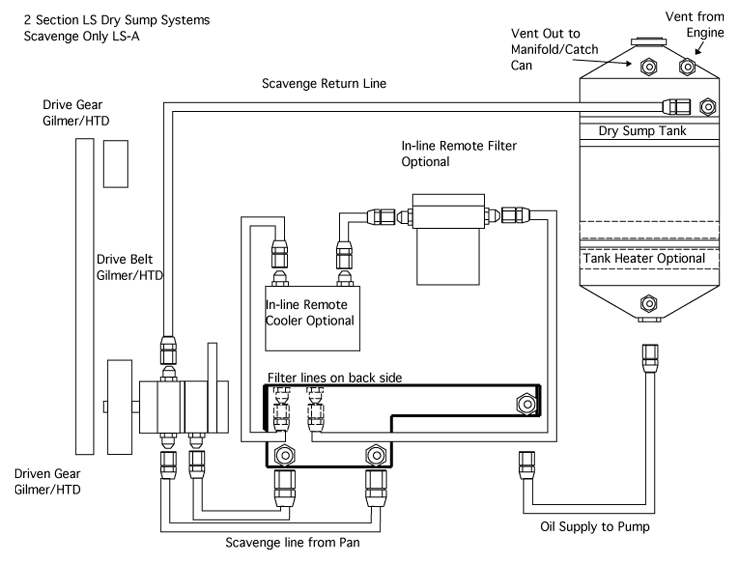

2 Section Scavenge Only LS A System
|
 |

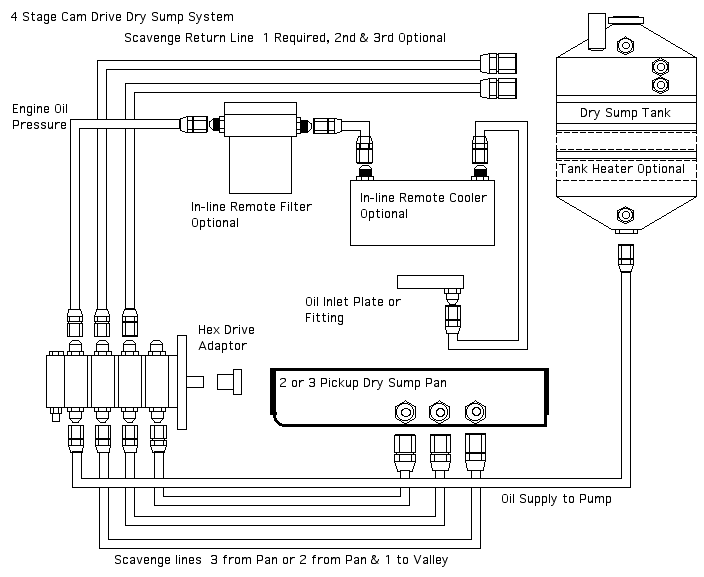

4 Stage Cam Drive Dry Sump System
3 Stage Cam Drive Dry Sump System

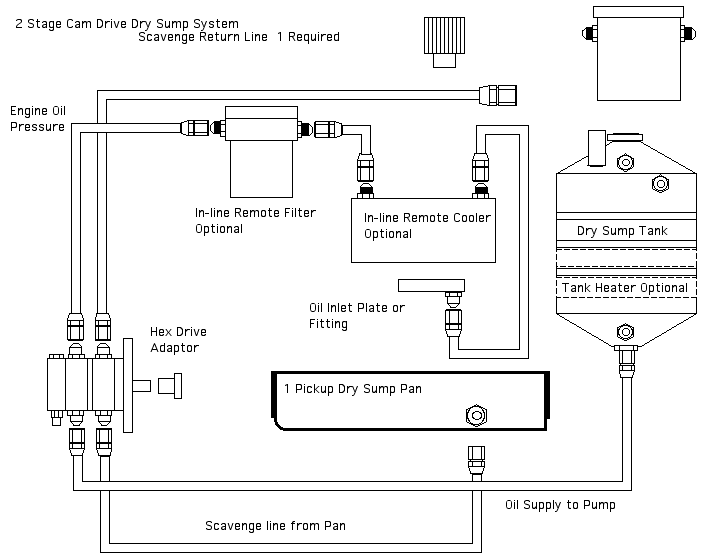

2 Stage Cam Drive Dry Sump System (Special Applications Only)

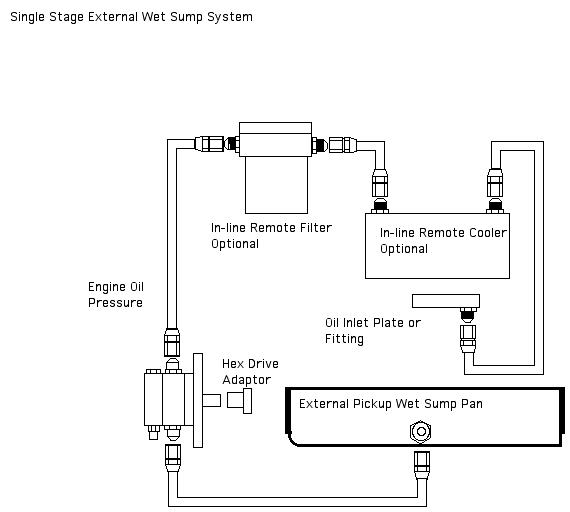

Single Stage External Wet Sump System

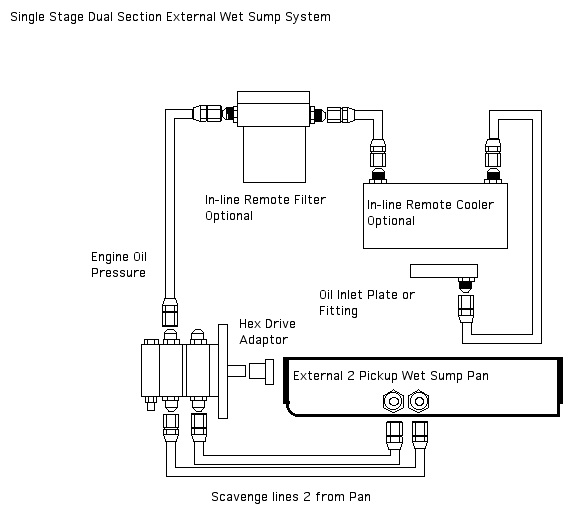

Single Stage Dual Section External Wet Sump System |
Back to main menu
[ SCHEMATICS ]
[ 5 Stage Belt Drive Dry Sump System ]
